Hydronic Components
VORTEX, a brand of HumiTech, is manufactured in Turkey through a joint venture with two of the largest manufacturers of expansion tanks and air separators in Turkey and Europe.
Expansion Tanks
Air SeparatorsExpansion Tanks & Air Separators
VORTEX delivers high-quality hydronic components that improve system stability, efficiency and long-term reliability in HVAC applications.
The range of expansion tanks and air separators maintains system pressure balance, removes air and impurities, protects critical equipment and optimizes overall performance. Manufactured to European quality standards and approvals including CE, TGS, PCT and ISO 9001:2015.
Technical features
- Improved system stability and performance
- Effective air separation and elimination
- System pressure management
- Protection of pumps and system components
- Durable construction for long-term operation
- For heating and cooling applications
- Wide range of sizes and configurations
Applications
- HVAC Systems
- Chilled Water Networks
- Heating Systems
- FCU Systems
- AHU Systems
- Commercial Buildings
- Industrial Facilities
- Residential Projects

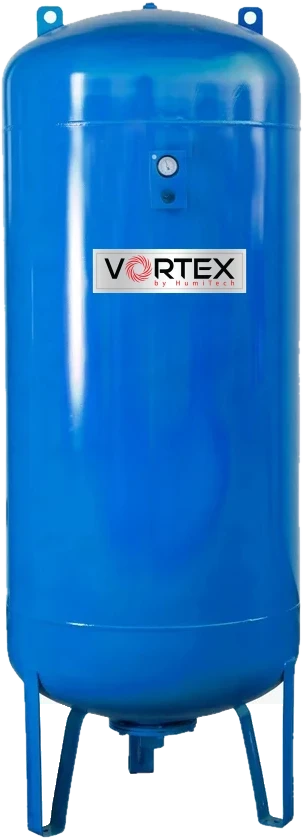

Expansion Tanks
Designed to manage pressure variations in closed hydronic systems and keep operation stable. Available in horizontal and vertical configurations across a wide range of capacities and pressure ratings.
| Capacity | 2 – 10,000 L |
|---|---|
| Design | Vertical or horizontal |
| Pressure ratings | 8 / 10 / 16 bar |
| Membrane | High-quality EPDM, changeable |
| Flange connection | Stainless steel or galvanized |
| Outer surface | Epoxy primer + PU acrylic paint |
| Membrane certifications | DIN 4807-3, NSF-61, WRAS, BS-6920 |
| Colour | Blue, RAL 5015 |
| Optional | Butyl membrane on request |

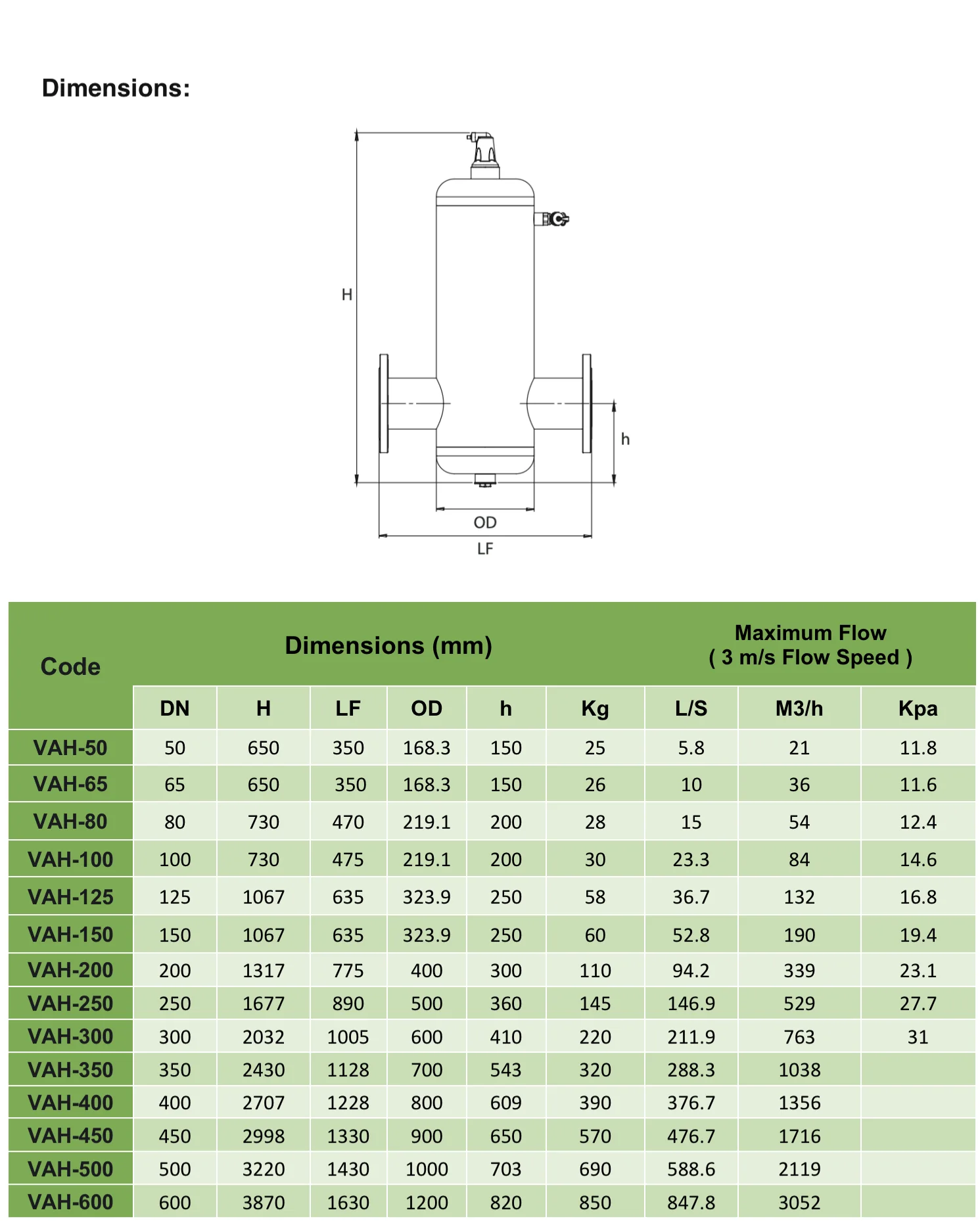

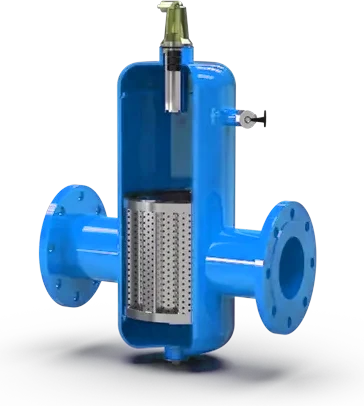

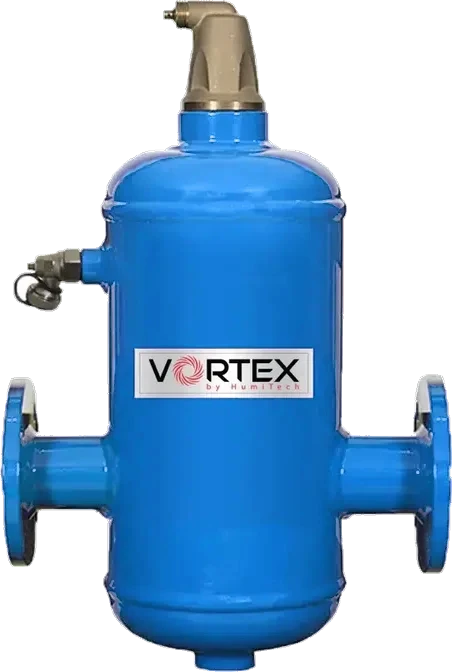

Air Separators
Continuously remove entrained air and micro-bubbles from closed heating and cooling systems, improving heat transfer, reducing corrosion and cavitation, and keeping the system efficient.
- Removes circulating air and micro-bubbles
- Removes trapped air when correctly located
- Greatly reduces manual venting
- Constant low pressure drop
- No unnecessary shutdown
- Reduced commissioning time after fill
- Optimum heat transfer
- Increased component life
- No pump cavitation
- Quiet operation
- Two-year guarantee
| Body | Carbon steel ST37 / nickel coated |
|---|---|
| Internal element | Stainless steel |
| Max. working pressure | 10 bar |
| Max. working temperature | 110 °C |
| Test pressure | 15 bar (hydrostatic, 240 s) |
| Nominal flow velocity | 1.5 m/s |
| Max. flow velocity | 3 m/s |
| Max. glycol | 50% |
| Flange | PN16 (EN-1092) |
